100-100 EXCEL CAT6 UTP EXTERNAL GRADE PE CABLE 305M BLACK
Excel 100-100 EXCEL CAT6 UTP EXTERNAL GRADE PE CABLE 305M BLACK description
100-100 EXCEL CAT6 UTP EXTERNAL GRADE PE CABLE 305M BLACK

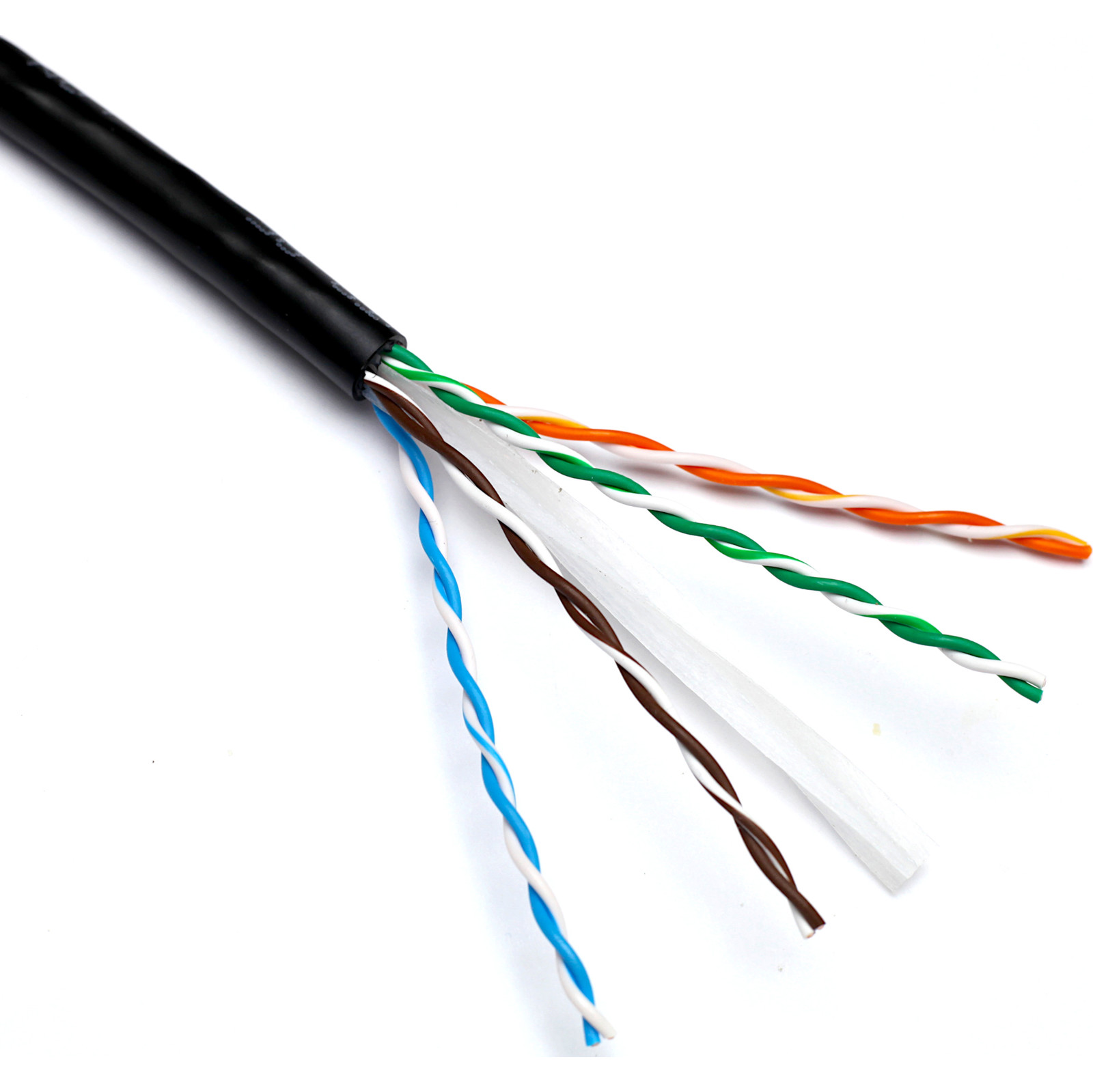

Excel Cat6 ethernet cable U/UTP PE external Grade Fca manufactured and tested to the TIA/EIA 568?B.2?1, EN50173?1 and ISO/ IEC 11801 Cat6 specifications, sold in 305 m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.
These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a PE sheath.
- Brand :Excel
- Part Number :100-100
- Conductor surface :Bare
- Awg size :23
- Conductor category :Class 1 = solid
- Total number of cores :8
- Stranding element :Pairs
- Specification core insulation :Polyethylene (PE)
Cat6 external grade cable
External use
No conductor screening
Outer sheath colour black
Reaction-to-fire class according to EN 13501-6: Fca
23 AWG size conductors
UV Exposure tested in accordance with ASTM G154 & G155
